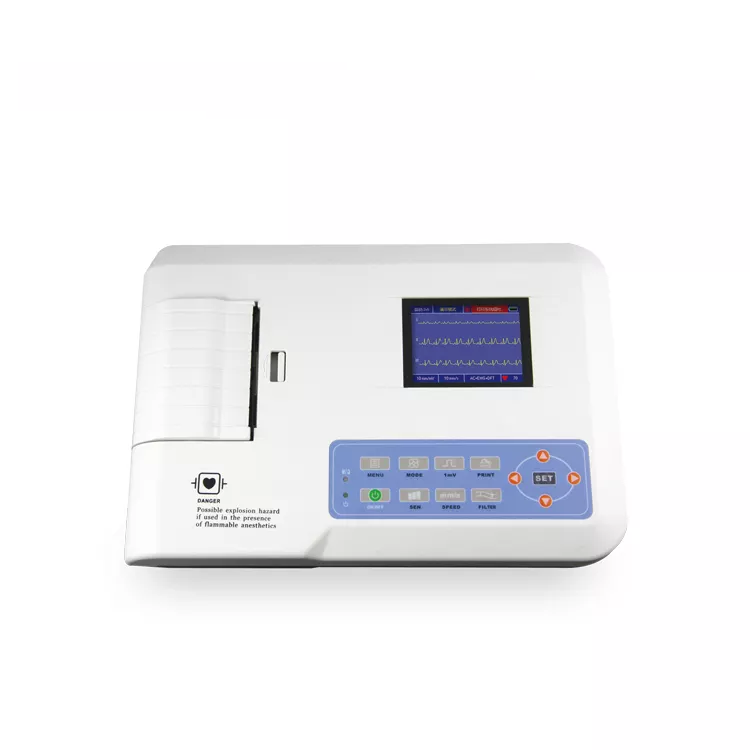

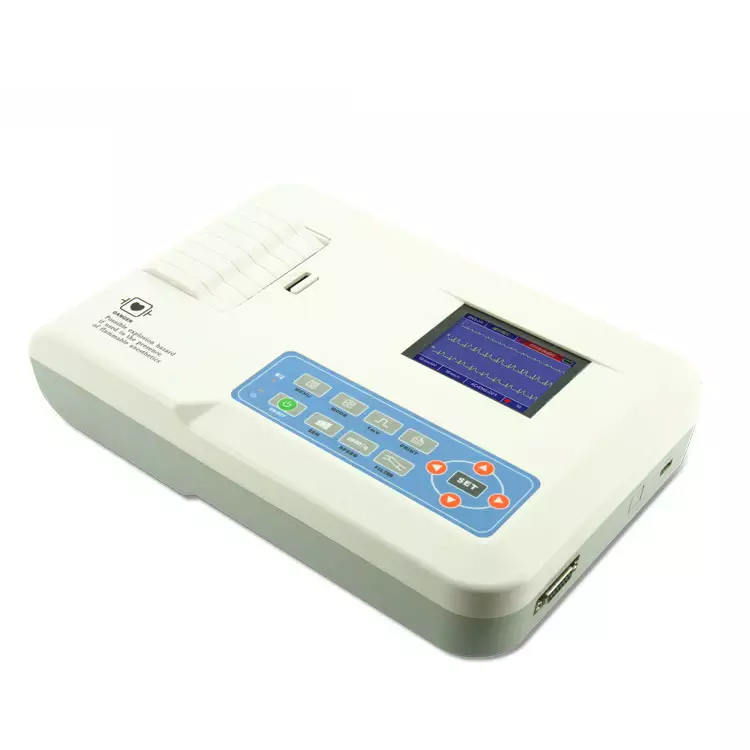

Name: ECG Electrocardiograph
SKU: 59UR8WN
Availability: InStock

Share it now !

Product Name	Electrocardiograph
Function	Collecting 12-lead ECG signal simultaneously
Certification	CE
Warranty	1 Year
After Sales Service	after-sale support

Features

High resolution thermal-array output system(8 dots/mm), no adjustment required. Frequency Response is up to 150Hz.
Sync collection for 12-lead ECG support routine 12-lead and Cabrera-lead waveform display
Get high-quality ECG waveform via AC filter DFT filter, EMG filter and Low-pass Filter of ECG signal.
Display 3/6/12-lead ECG waveform, print mode, sensitivity, paper speed, filter status, etc.
On one screen, convenient for contrastively diagnosing

Patient leakage current	<10 µA
Input impedance	≥2.5MΩ
Time constant	≥ 3.2s
Noise level	≤12μV
CMRR	≥105dB
Accuracy of input signal	±5%
Inter channel time deviation	<100 µs
Power supply	AC: 100V~240V(50/60Hz)
Atmospheric pressure	500 hPa~1060 hPa
Dimension	315 mm(L)×215 mm(W)×77 mm(H)
Weight	1.6g
