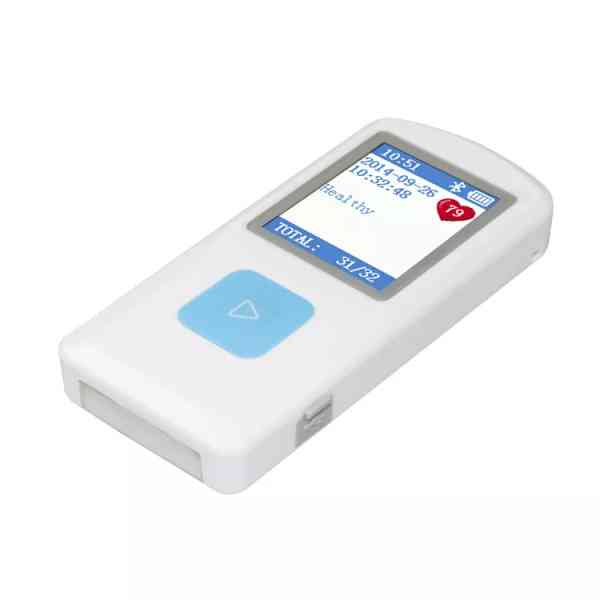

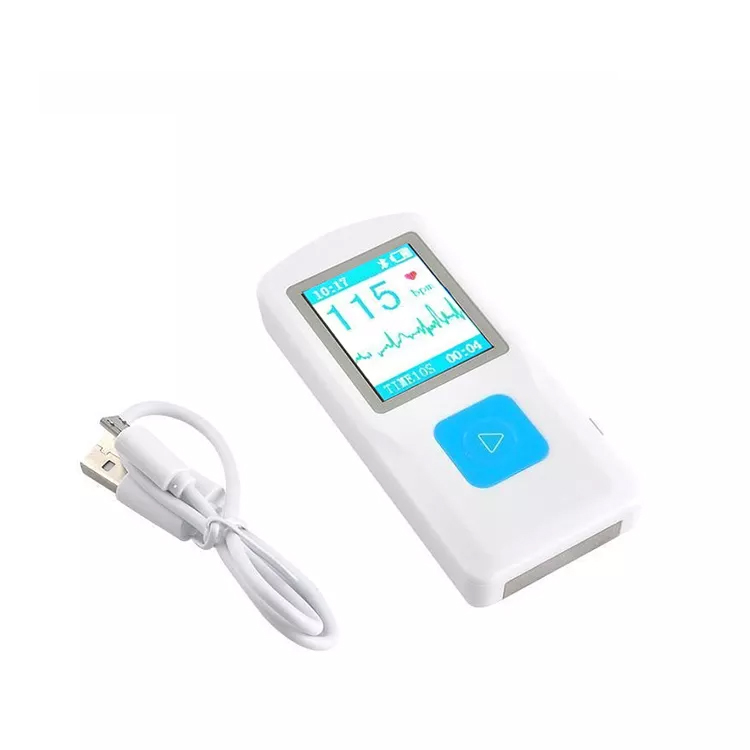

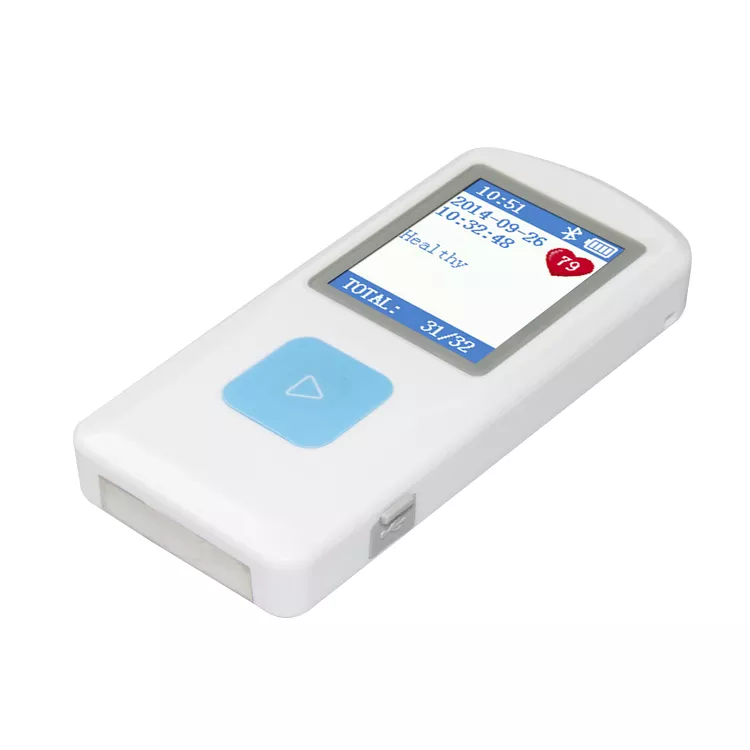

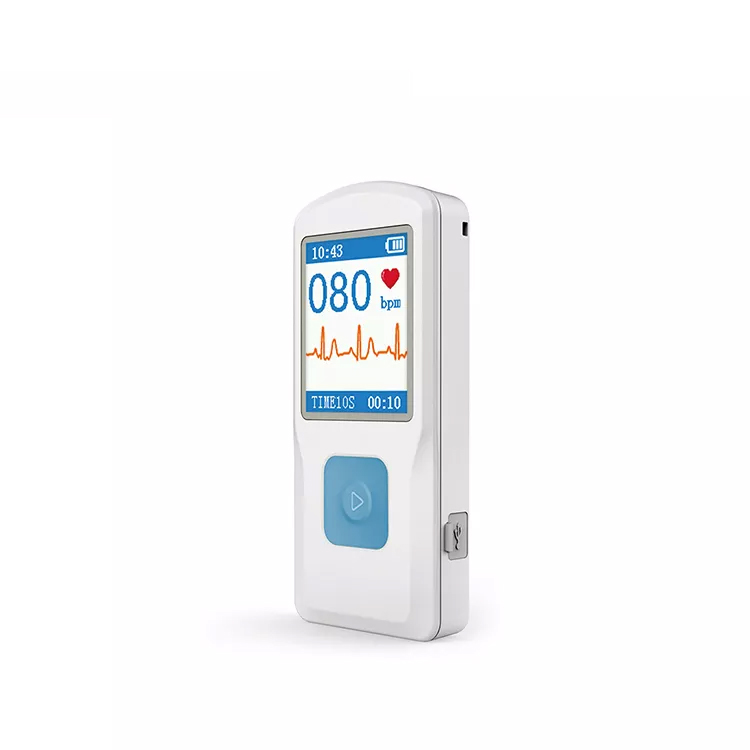

Name: Portable ECG Monitor
SKU: OE4MBWS
Availability: InStock

Share it now !

Features

1.77″ color TFT-LCD.

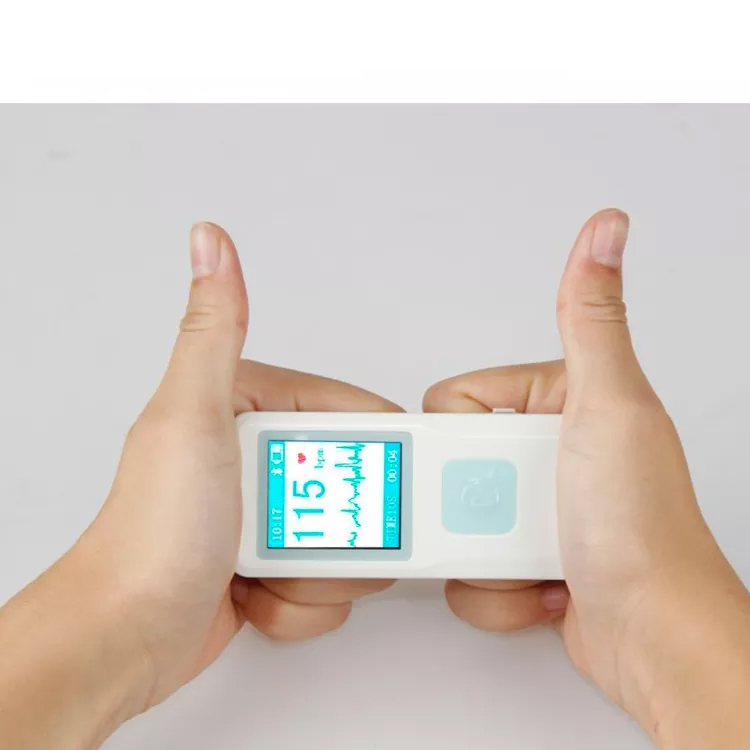

Quickly to check ECG once finger touching, convenient to operate.
Accurate conclusion can be obtained immediately after measuring.
The built-in rechargeable lithium battery can continuously record for up to 500 cases in full charging.
Blue tooth transmission.
ECG data can be saved to CLOUD Platform permanently, convenient to check and analyze.
Historical data can be printed at any time, convenient to diagnose.

Calibration voltage	1mV±5%
Standard sensitivity	10mm/mV+5%
Amplitude frequency characteristic	10Hz,1Hz~20Hz:(+0.4dB,-3dB)
Noise level	≤30μV
CMRR	≥60dB
Scanning speed	25mm/s±5%
Sampling rate	250 dots/s
HR measurement range	30bpm~300bpm,error +1bpm or 1%
Degree of waterproof	IP22

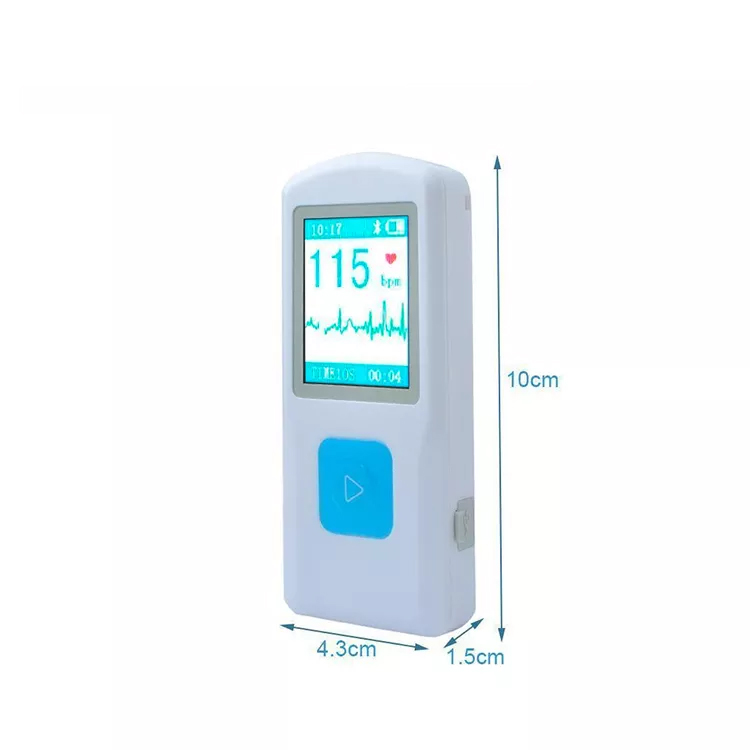

Dimension	100mm(L)x45mm(W)x15mm(H)
Weight	60g
