General

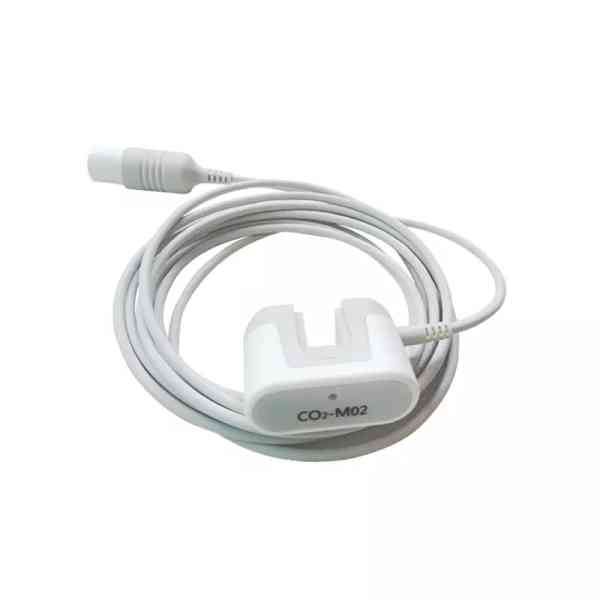

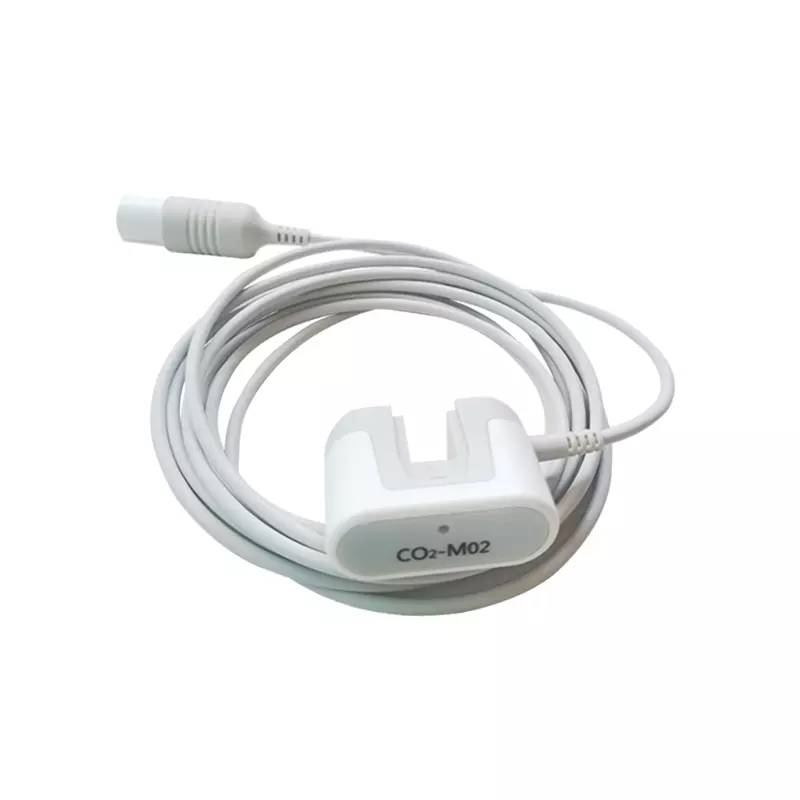

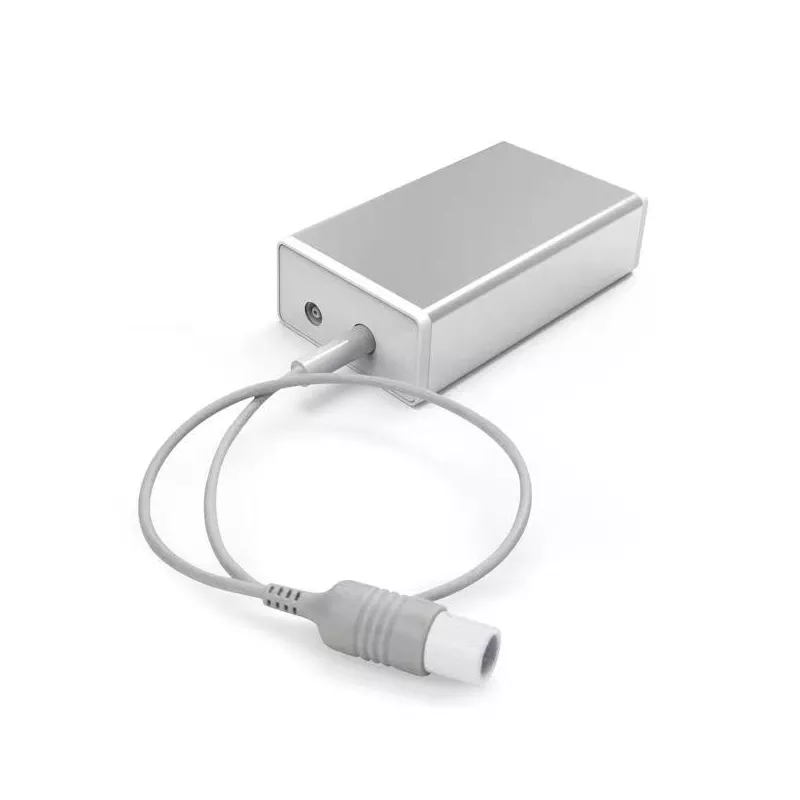

| Product Name | Gas CO2 Monitor Module |
|---|---|
| Function | Provides patient’s physiological state for physician or nurse in time |
| Certification | CE |
| Warranty | 1 Year |
| After Sales Service | after-sale support |
Details
| Features |
|
|---|

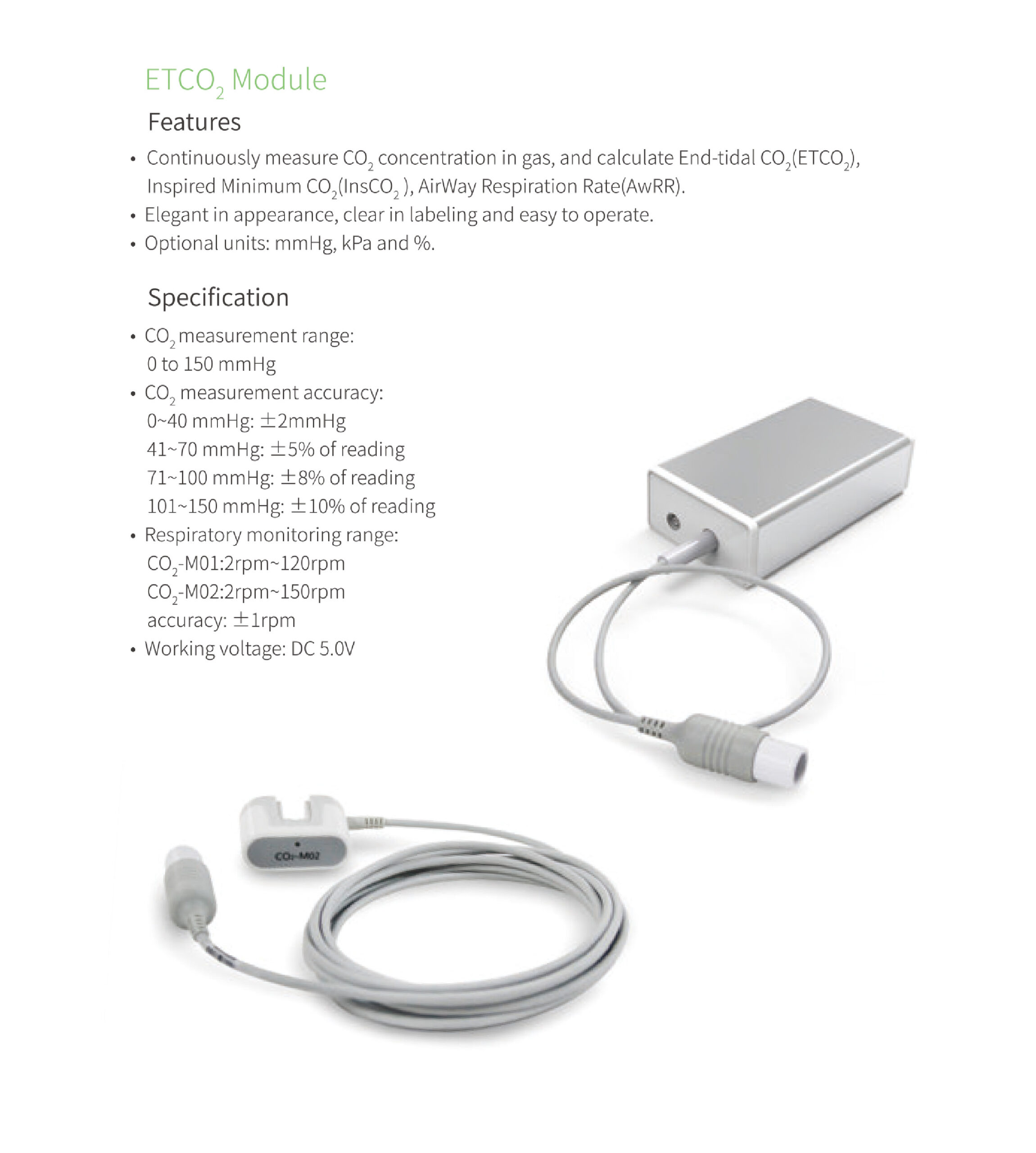

Specification
| CO2 Measurement Range | 0 to 150 mmHg |
|---|---|
| CO2 Measurement Accuracy | 0~40 mmHg: ±2mmHg 41~70 mmHg: ±5% of reading 71~100 mmHg: ±8% of reading 101~150 mmHg: ±10% of reading |
| Respiratory monitoring range | 2rpm~150rpm, accuracy: ±1rpm |
| Working voltage | DC 5.0V |
| Dimension | 103mm(L)×69mm(W)×39mm(H) |
| Net Weight | 141g |
