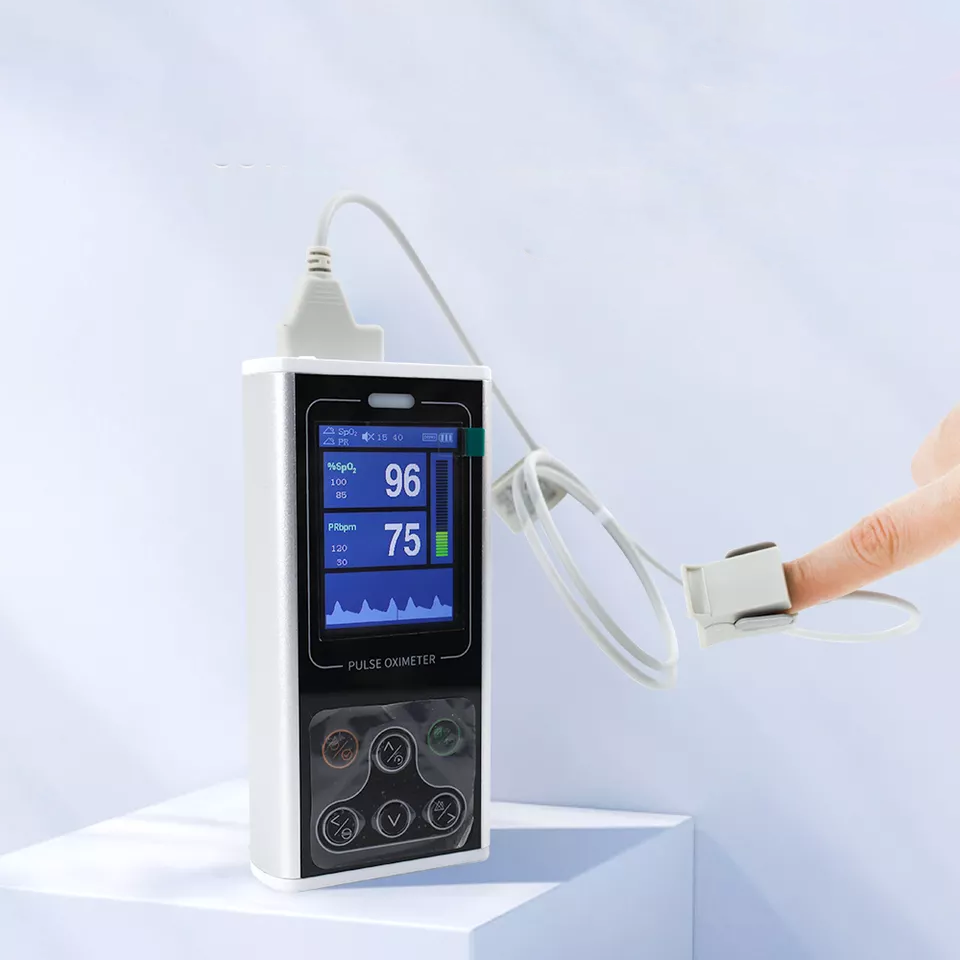

Pulse 0ximeter adopts Photoelectric Oxyhemoglobin lnspection Technology integrated with Capacity Pulse Scanning & Recordingechnology, which can be used to measure human oxygen saturation and pulse rate through finger. The device is suitable for use in family,hospital, oxygen bar, community healthcare and physical care in sports, etc. (lt can be used before or after exercise, but not recommended to use during exercising).
General
| Product Name | Pulse Oximeter |
|---|---|
| Function | Diagnose,suitable for use in family,hospital, oxygen bar, community healthcare and physical care in sports, etc |
| Certification | CE |
| Warranty | 1 Year |
| After Sales Service | after-sale technical support |
Details
| Instrument classification | Class II |
|---|---|
| Usage | Professional Testing |
| Power Source | Electric |
| Material | Plastic |
| Features |
|
Specification

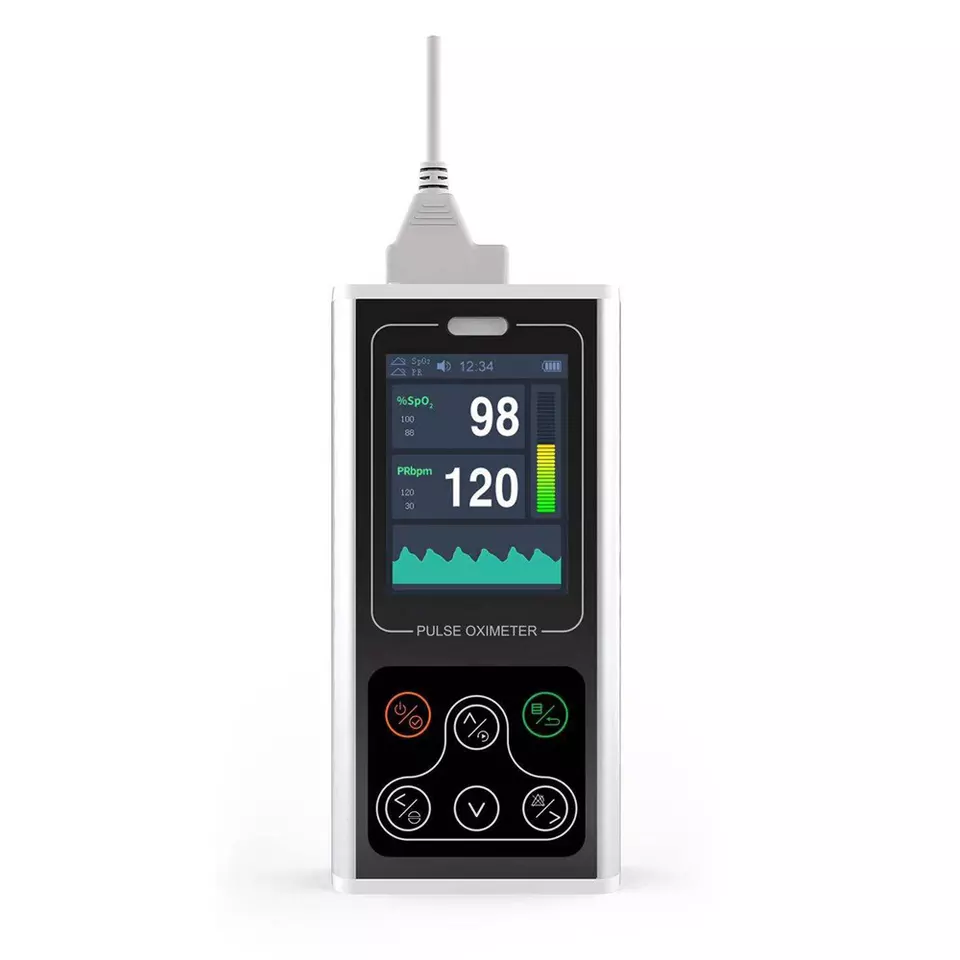

| Display mode | 2.8″ color screen |
|---|---|
| Screen resolution | 240* 320 |

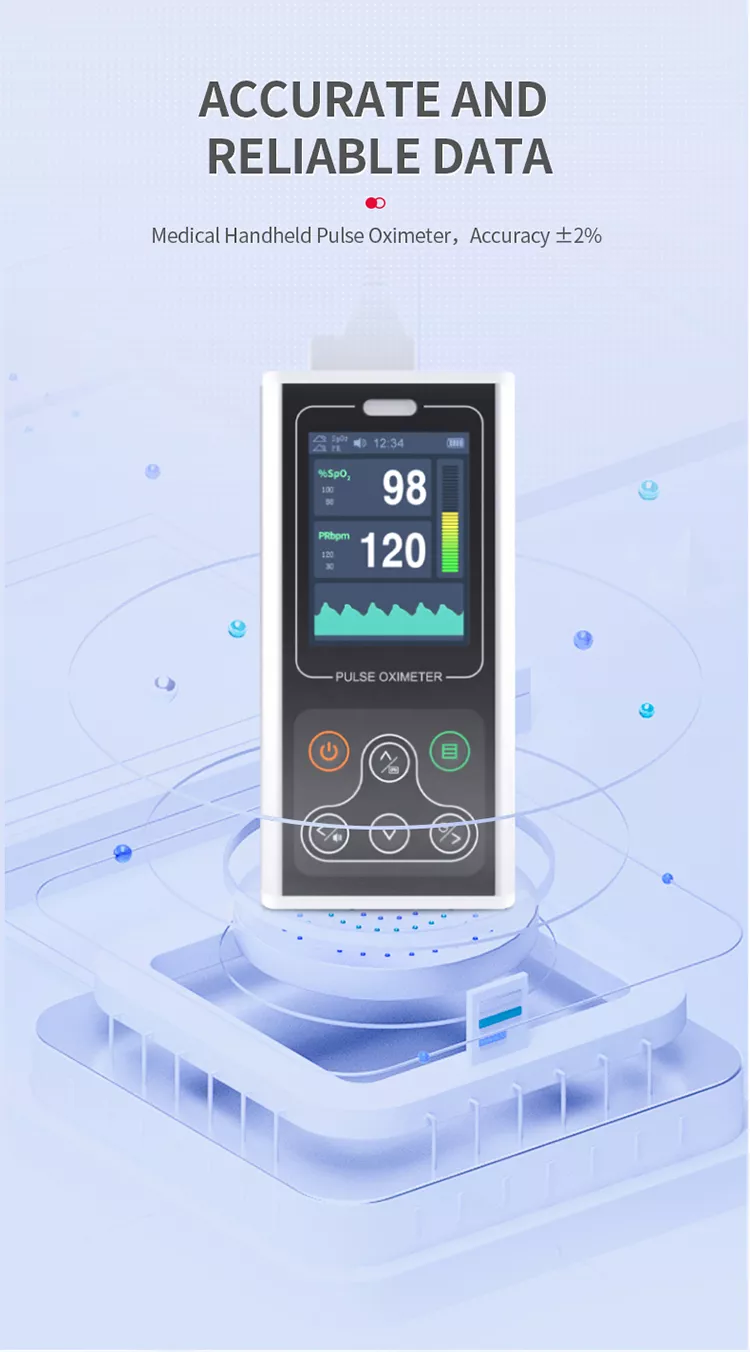

| SpO, measurement range | 0 % ~ 100 %(resolution: 1 %) Accuracv: 70%~100%: +2% 0%~69%:unspecified |

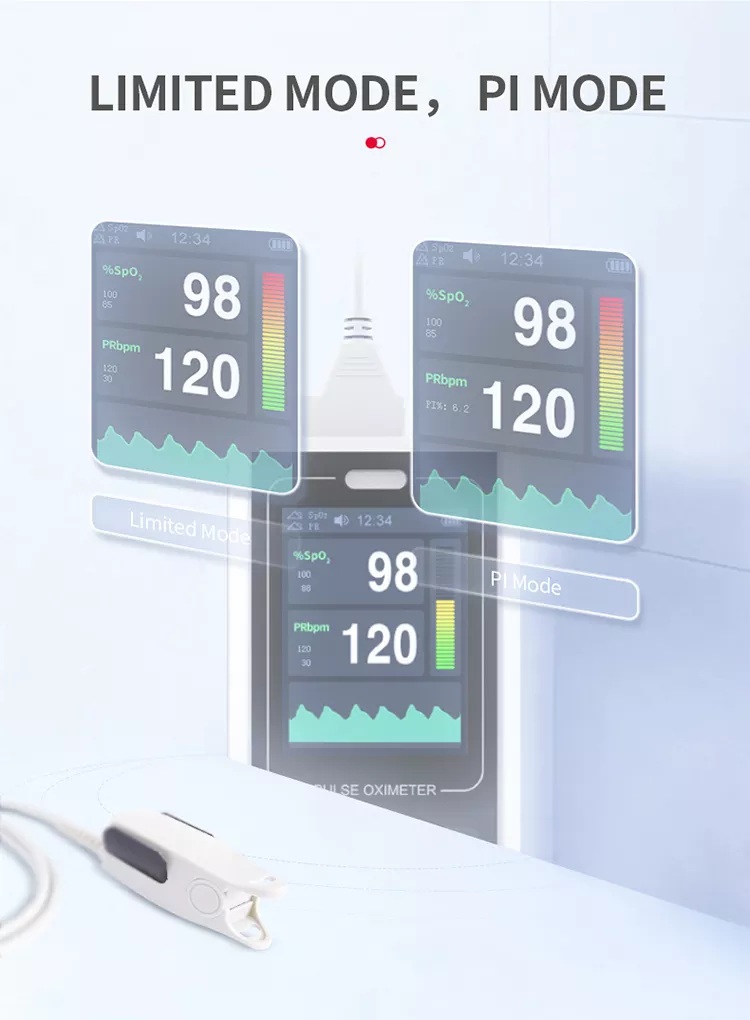

| PI measurement range | 0 % ~ 20 % Accuracy: 1% ~20 %,allowable absolute error: 士1%: 0%~0.9 %.allowable absolute error: + 0.2 % |
| PR measurement range | 30 bpm~250 bpm(resolution:1 bpm) Accuracy:土2 bpm or 2 %, whichever is greater. |
| Accuracy under low perfusion | low perfusion 0.4 %, SpO,accuracy: +4%; PR accuracy: 士 2 bpm or 士 2 %, whichever is greater. |
| Light interference | compared to the values measured in normal condition and ambient light condition, the deviation: < +1% |
| Battery | A rechargeable built-in lithium battery |
| Shelf Life | 1 year |
