General

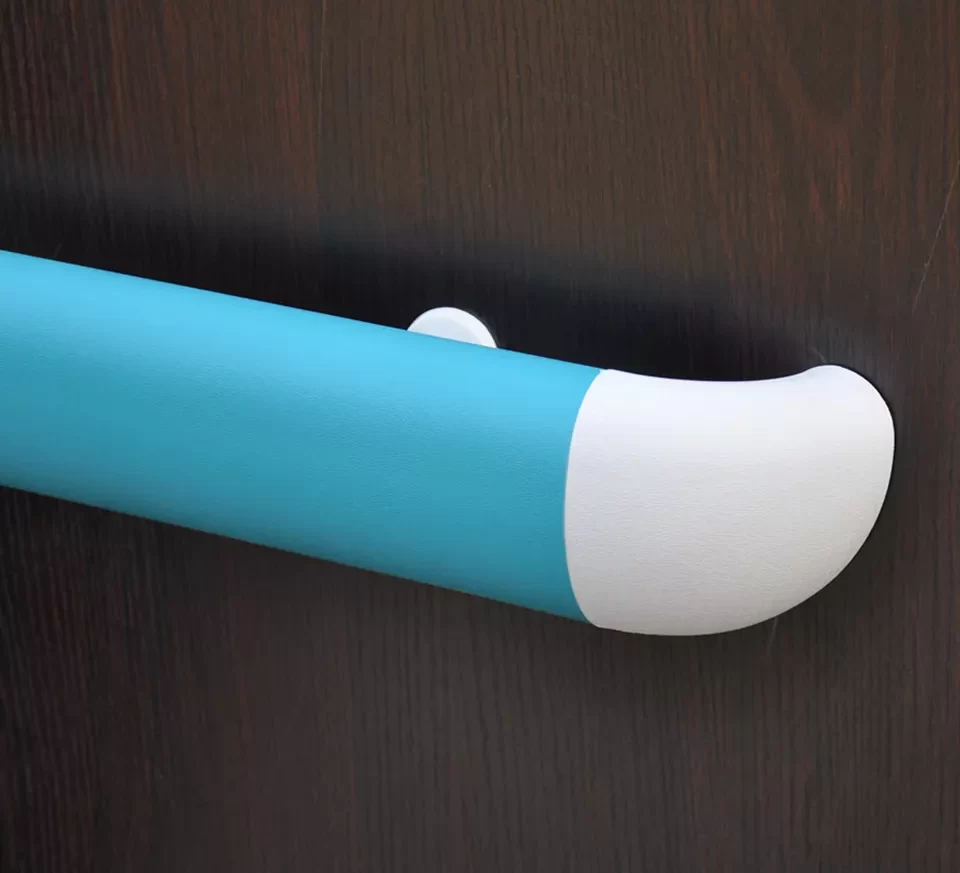

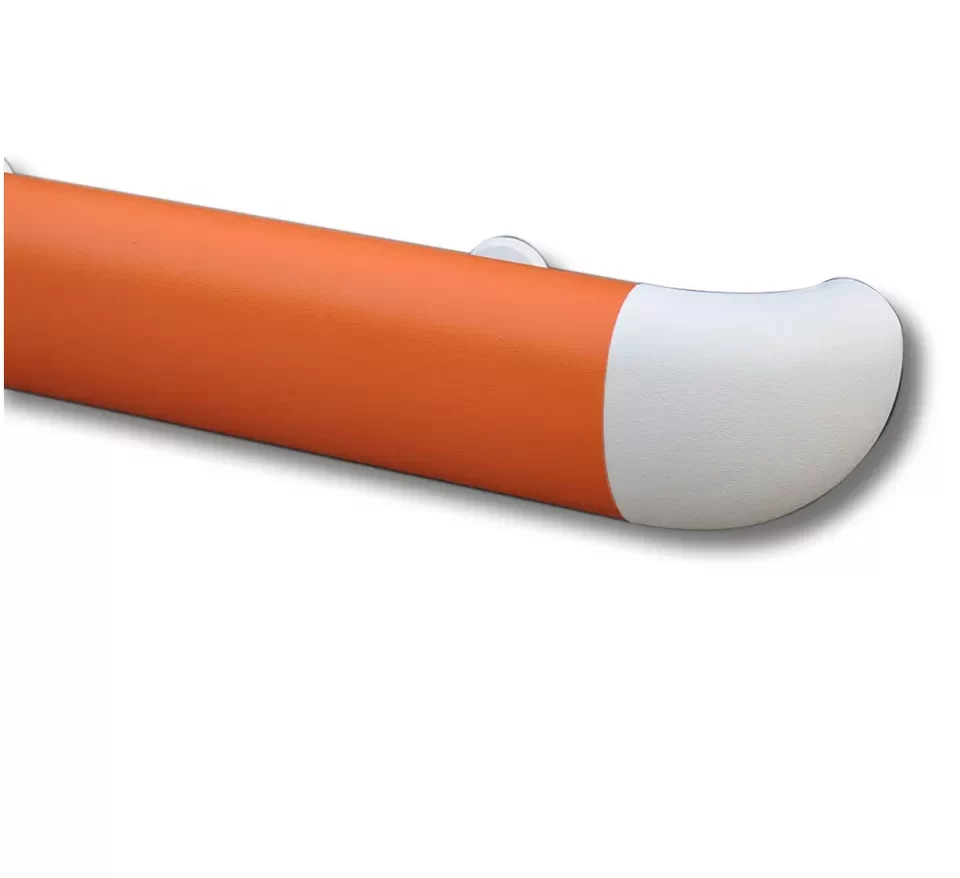

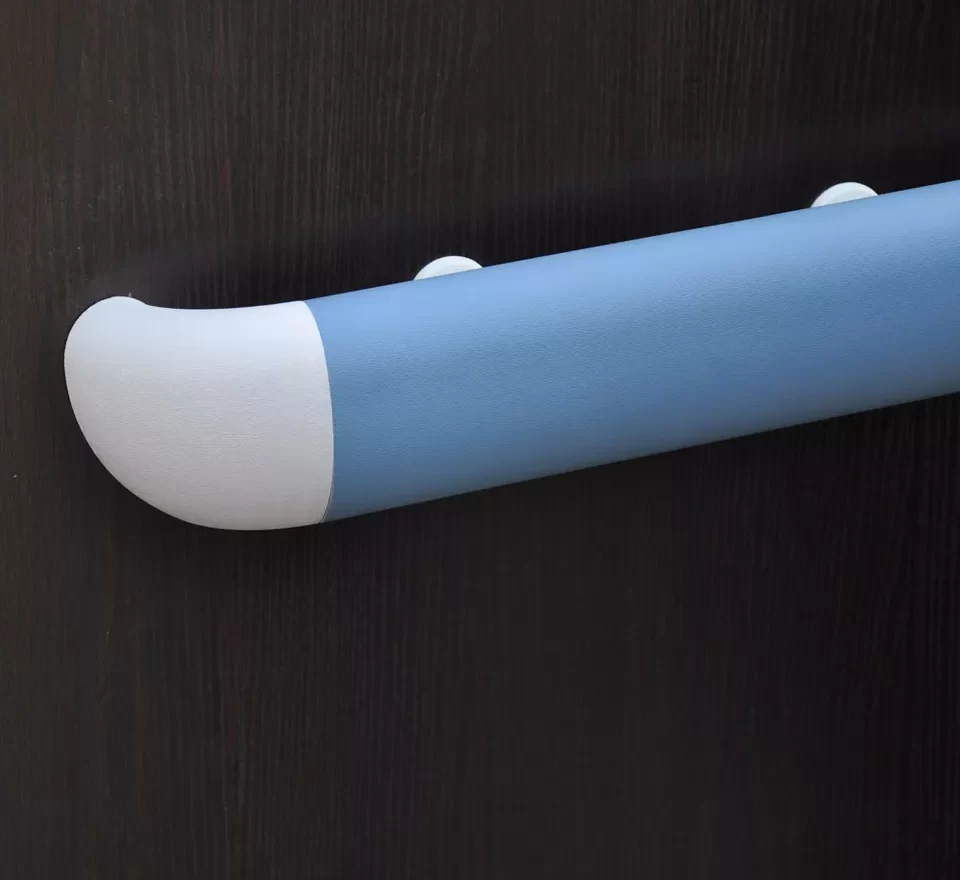

| Product Name | PVC Protecting Handrail for Disabled in hospital / Sanatorium |
|---|---|
| Function | Wall Protection System |
| Certification | / |
| Warranty | 1 Year |
| After Sales Service | after-sale technical support |
Details

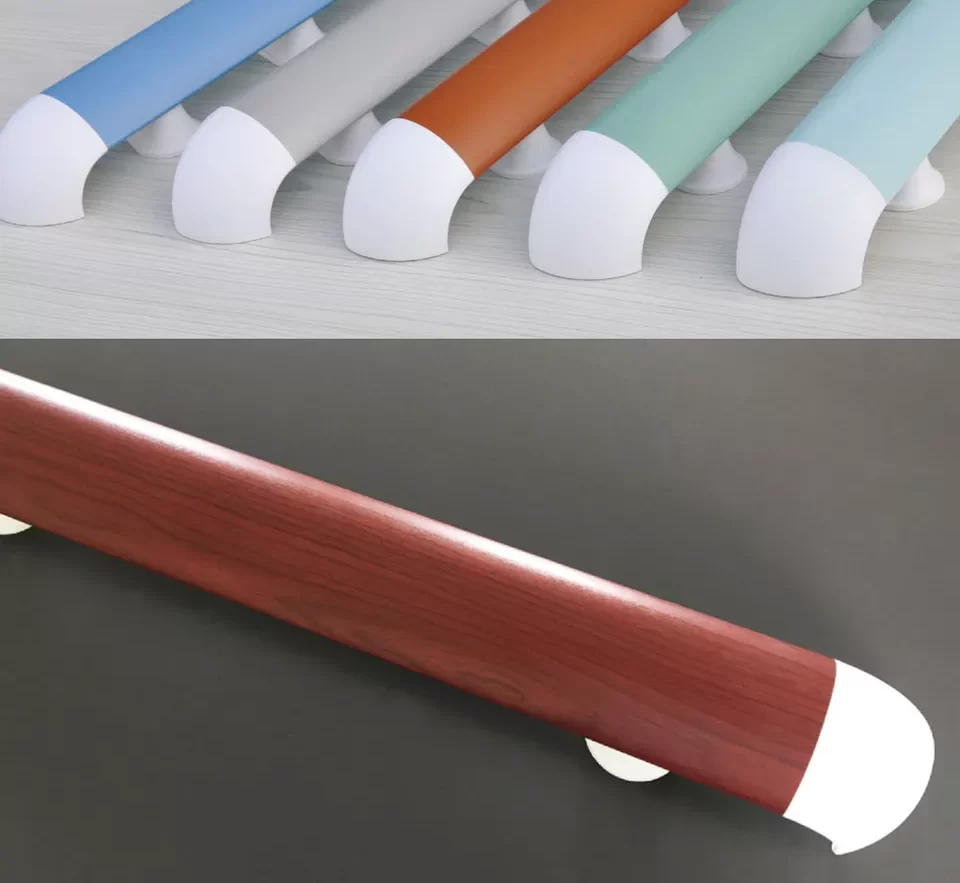

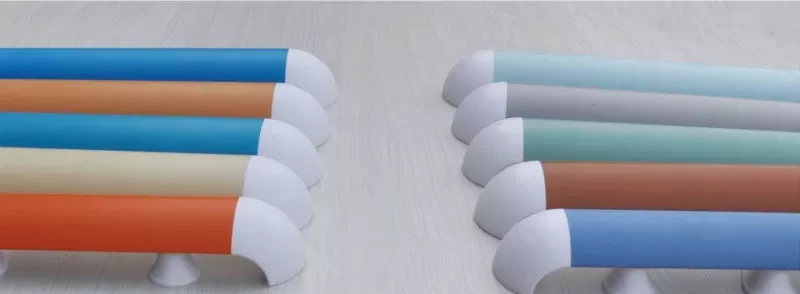

| Color | customized |
|---|---|
| Position | Hospital, Beadhouse,nursing home, welfare home, kindergarten, etc. |
| Mounted | WALL |

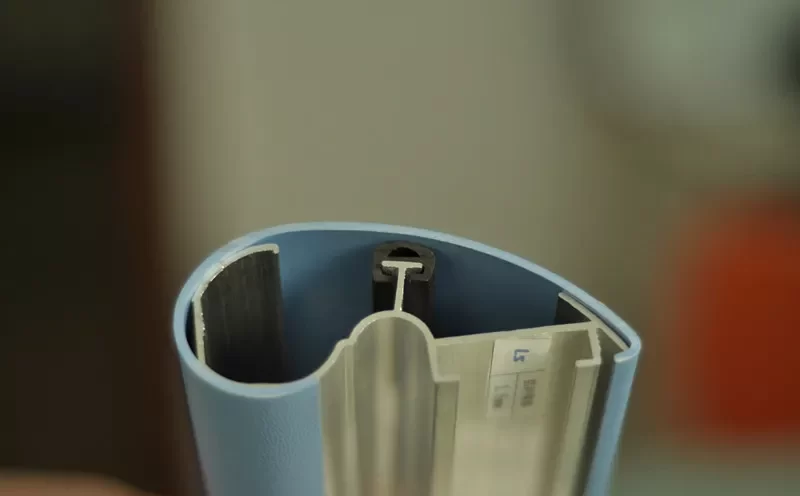

| Inner Support | Aluminum Alloy(1.5mm / 2.0mm) |
| Cover Material | PVC Vinyl (2.0mm±0.1mm) |

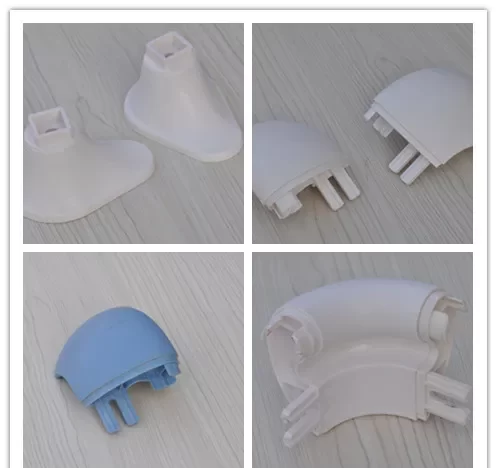

| Accessory | 2 ABS Brackets/m 1 ABS Elbow/m Screws and expansion screws |
| Applicable place | 1. Hospital,nursing home,welfare home,old people’s club,disabled activities center, hotel,kindergarten, shopping mall,etc. 2. Along hallways and in rooms that require a handrail suitable for pedestrian and wheelchair traffic. 3. Counters in retail stores, hotels, hospitals, nursing homes, offices, etc 4. Wherever wall protection is required to stop damage to walls from wheeled devices and beds |
| Features |
|

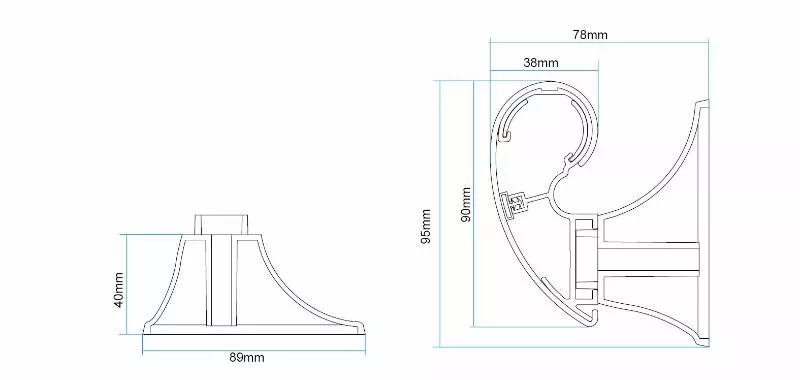

Specification
| Unit length | 6m |
|---|---|
| Width | 90mm |
| Thickness | 38mm |
| Outside distance to wall | 78mm |
| Bracket height | 40mm |
| Aluminum alloy thickness | 1.5/2.0mm |
| PVC thickness | 2.0±0.2mm |
