General

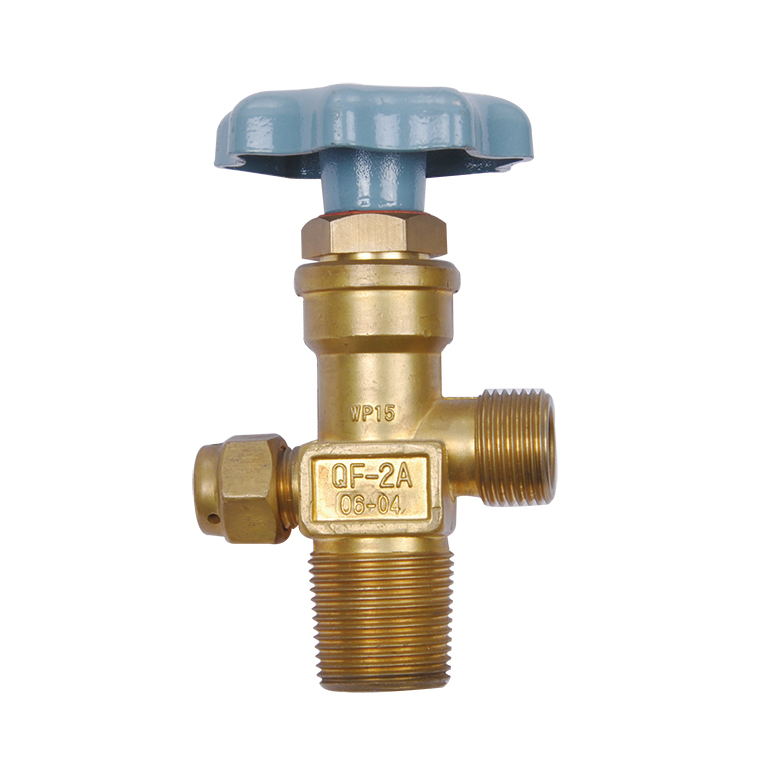

| Product Name | Industrial Oxygen Gas Cylinder Valve |
|---|---|
| Function | For switching gas flow on the cylinders whose operating mediums are oxygen, nitrogen, air and other high-purity gases with the operating pressure≤15MPa to 30 MPa. |
| Certification | / |
| Warranty | / |
| After Sales Service | Online Technical Support |
Details
| Gas Service | Carbon Dioxide |
|---|---|
| Material | Brass |
| Surface Treatment | Shot Blasting or Pickling |
Specification
| Nominal Diameter | 7 mm |
|---|---|
| Medium | Gas |
| Working Pressure | 15MPa |
| Outlet Thread | G5/8 |
| Inlet Thread | GB8335 Pz27.8/W28.8/25e |
| Specification | 35*35*13CM/CTN 25PCS/CTN |
| Orifice Diameter | ≥ø7mm |
| Pressure of Safety Device | 20.25~22.5MPa |
| Working Temperature | -40ºC~+60ºC |
