General
| Product Name | Electrocardiograph 12 channel leads ECG machine |
|---|---|
| Function | Hospital clinic equipment |
| Certification | CE ISO TUV |
| Warranty | 1 Year |
| After Sales Service | after-sale technical support |
Details
| Material | Plastic |
|---|---|
| Power Source | Electricity |
| Function | Detecting Body Health |
| Recording Mode | Auto/manual/rhythm |
| Instrument classification | Class II |
| Paper type | Thermal roll and Z-fold paper, paper width: 210mm (Built-in thermal printer) A4 size paper ( by connecting specific external USB printer) |

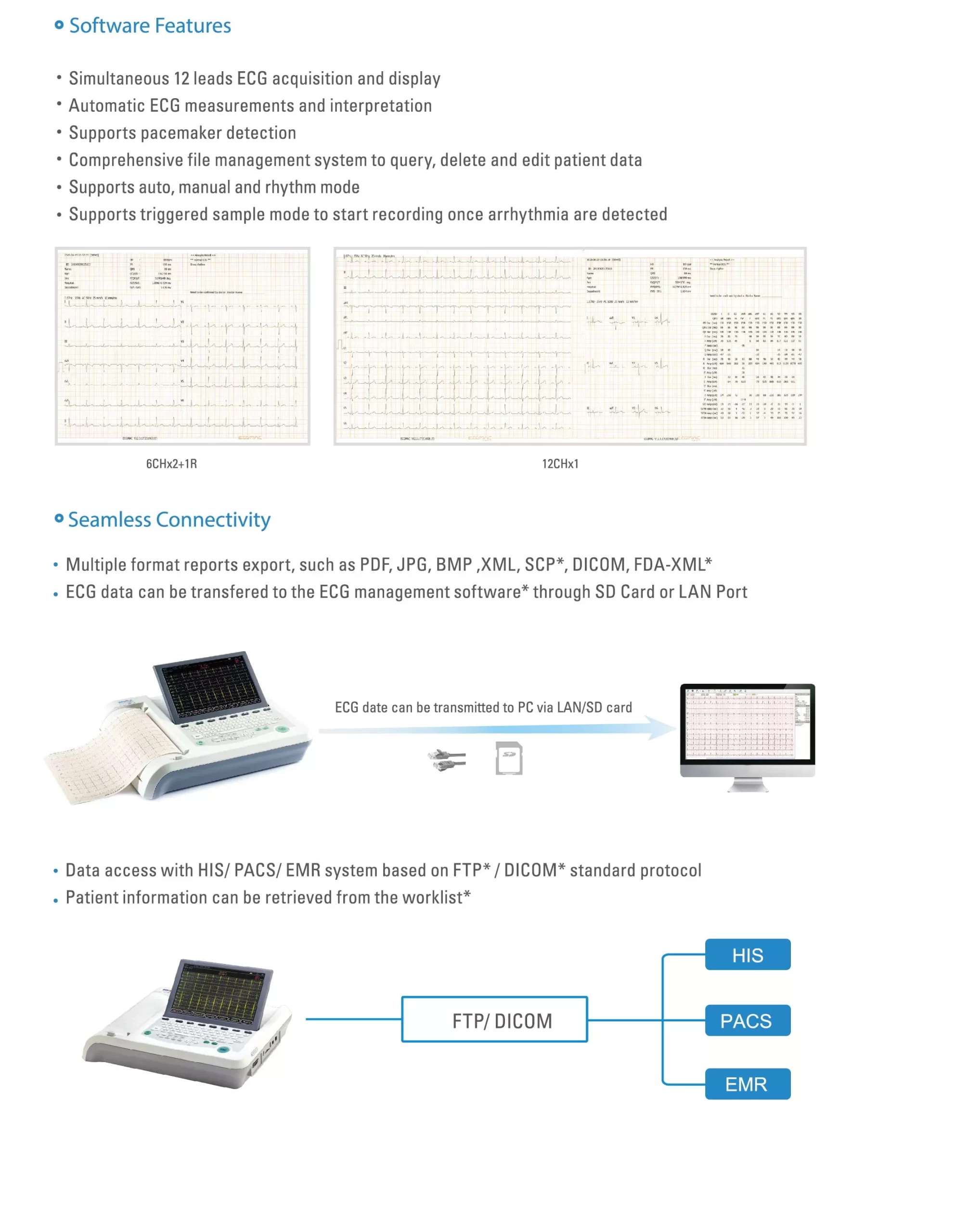

| Software features | 1. Simultaneous 12 leads ECG acquisition and display 2. Automatic ECG measurements and interpretation 3. Supports pacemaker detection 4. Comprehensive file management system to query, delete and edit patient data 5. Supports auto,manual,and rhythm mode 6. Supports triggered sample mode to start recording once arrhythmia are detected |
| Seamless connectivity | 1. Multiple format reports export, such as PDF, JPG,BMP, XML, SCP*, DICOM, FDA-XML 2. ECG data can be transfered to the ECG management software * through SD card or LAN port 3. Data access with HIS/PACS/EMR system based on FTP*/DICOM standard protocol 4. Patient information can be retrieved from the worklist |

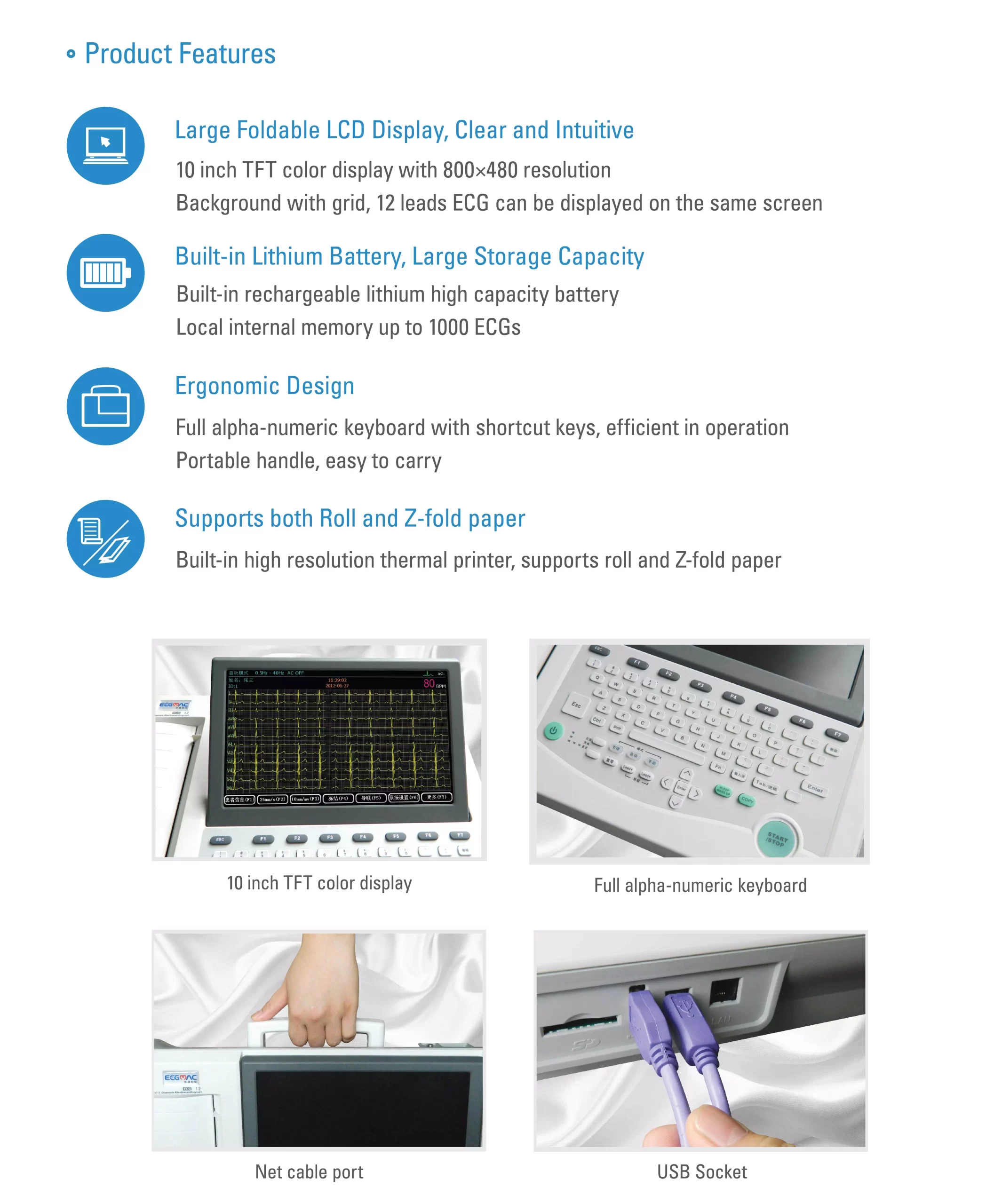

| Features |
|
Specification
| Battery type | 5200mAh lithium battery |
|---|---|
| AC input voltage | 100V~240V |
| Safety standard | IEC 60601-1-2005 |
| Sensitivity | 1.25, 2.5, 5, 10, 20, 40, 10/5, 20/10mm/mV, AGC |
| CMRR | ≥100dB (AC filter off),≥120dB (AC filter on) |
| Shelf Life | 1years |
| Lead | Standard 12 leads |
| Paper speed | 5 mm/ s, 6.25 mm/ s, 10 mm/ s, 12.5 mm/ s, 25 mm/ s, 50 mm/ s |
