General

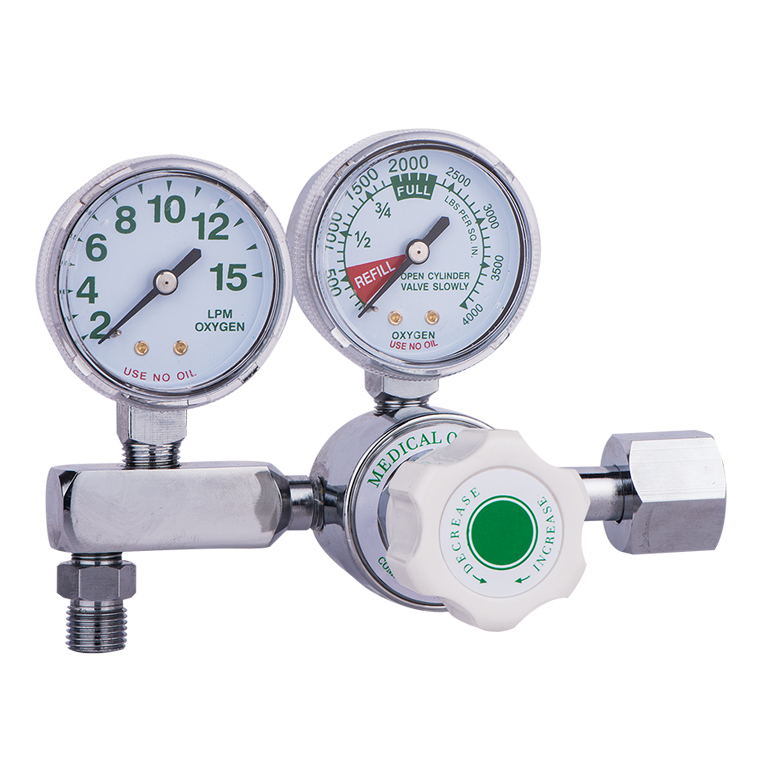

| Product Name | Medical Oxygen Regulator for Oxygen Cylinder |
|---|---|
| Function | for  oxygen breathing in hospital or home and meant to be connected on high pressure medical gas cylinder to decrease the outlet pressure and supply a stable low pressure for use. The pressure gauge indicates the pressure level of the gas cylinder. |
| Certification | CE, FDA, EEC, ISO13485 |
| Warranty | / |
| After Sales Service | / |
Details
| Structure | Diaphram type |
|---|---|
| Main body | Brass |
| Type | Breathing Apparatus |
| Scale | Small |
| Features |
|
| Packing | 10PCS/CTN (color box) G.W./N.W.:12/11KGS Dimension:52×44×18cm |
Specification
| Â Â Humidifier connection | 9/16 UNF |
|---|---|
| Safety valve | 0.35+_0.05MPa |
| Specification | 52.5*44*17.5/CTN 10PCS/CTN |
| Input Pressure | 15Mpa/23Mpa |
| Output Pressure | 0.2-0.3MPa |
| Connection thread | G5/8 Female,CGA540/W21.8 (to be Confirmed by Customer) |
| Humidifier bottle | 200ML |
| Flow Range | 0-10/15lpm |
| Working Pressure | 15/23MPa |
