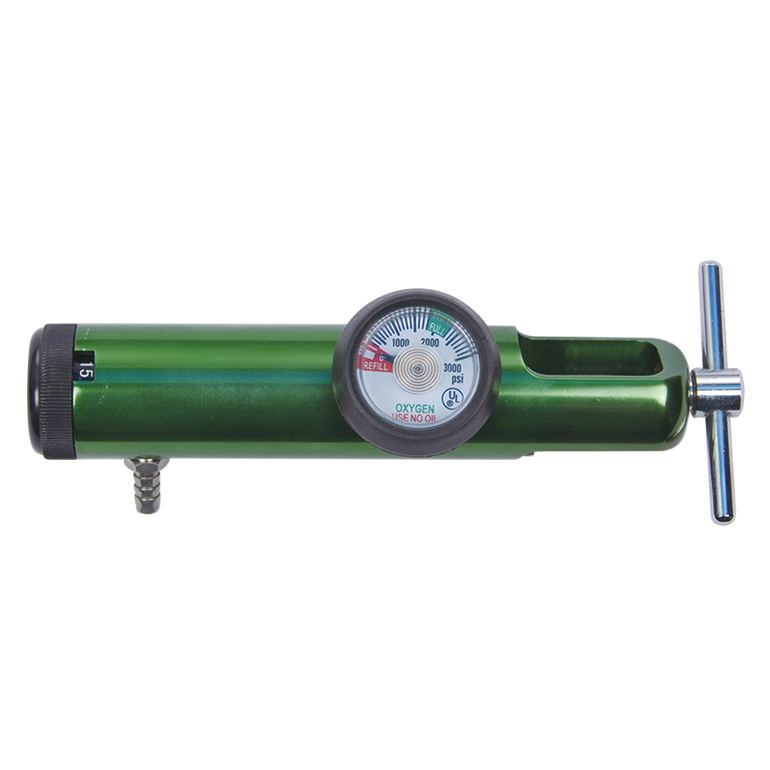

Oxygen Tank Regulator Barb Outlet

  • CE, FDA, EEC, ISO
  • Aluminum
  • Click type design
Share it now !

General

Product Name Oxygen Tank Regulator 0-15lpm Barb Outlet
Function for oxygen breathing in hospital or home,and meant to be connected on high pressure medical

gas cylinder to decrease the outlet pressure and supply a stable low pressure for use.

The pressure gauge indicates the pressure level of the gas cylinder.

Certification CE, FDA, EEC, ISO13485
Warranty /
After Sales Service /

Details

Structure piston type
Main body ALUMINUM
Colors Silver/Blue/Green/Golden
Core Inside Brass
Outlet DISS AND BARB
Type Breathing Apparatus
Scale Small
Optional Check Valve
Features
  • All oxygen flowmeter regulators series are CE 0120 and ISO 13485 certified
  • Encased in anodized aluminum hausing
  • Click type regulator design
  • Aluminum body with brass high pressure chamber
  • Easy to read flow rate window
  • 1-1/2″ pressure gauge for easy reading.
  • For use with oxygen cylinder
  • 3000psi max inlet pressure
  • BS/JIS/DIN/CGA standard inlet connection available
Packing 20PCS/CTN (yellow box)
G.W./N.W.:7/6.5KGS
Dimension:40×38×15cm

Specification

Specification 40*38*15/CTN 20PCS/CTN
Connection CGA870
Input Pressure 2200PSI
Output Pressure 50PSI~22PSI
Flow Range 0-4,0-8,0-15,0-25lpm
Working Pressure 3000psi





#
