Walk Faster & Further with Less Effort FES Device

Move Safely and Increase Confidence in Life

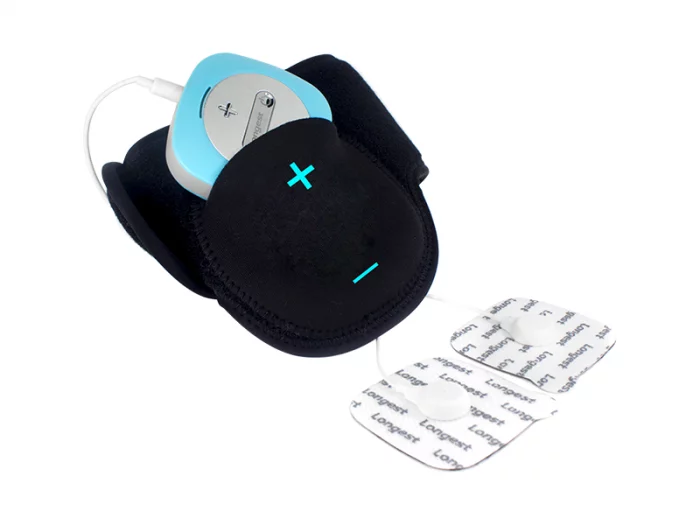

It is a wearable FES device for treating foot drop caused by MS, stroke, and severe injuries. It applies low-frequency electrical impulses to weak, damaged, or paralyzed muscles to make muscles contract again, which can help patients move again, improve muscle strength and flexibility, and prevent atrophy effectively.

This FES machine is mainly designed for foot drop patients to walk more naturally and live more independently. With training mode and walking mode, it can highly meet all needs of foot drop treatment. The effective electrical stimulation for foot drop can help you regain confidence.

General

Product Name	Walk Faster & Further with Less Effort FES Device
Function	for treating foot drop caused by MS, stroke, and severe injuries
Certification	FDA,Health Canada
Warranty	2 Year
After Sales Service	after-sale technical support

Details

Mode	Train Mode, Walk Mode
Output Waveform	Symmetrical biphasic pulse
APPLICATIONS	Our FES device is applicable for patients suffering foot drop caused by: MS, stroke, spinal cord injury, peripheral neuropathy, and other neurological diseases Injury of tibialis anterior
Medical Benefits	Improve gait Reduce falling or tripping Strengthen muscles Improve your balance Reduce efforts to walk Enable you to walk faster and further Reduce spasticity Reduce pain
Features	Advanced FES Technology Small & Lightweight, Wearable Convenient APP Control User-defined Protocol Built-in Smart Sensor Energy Saving & Cost-efficient

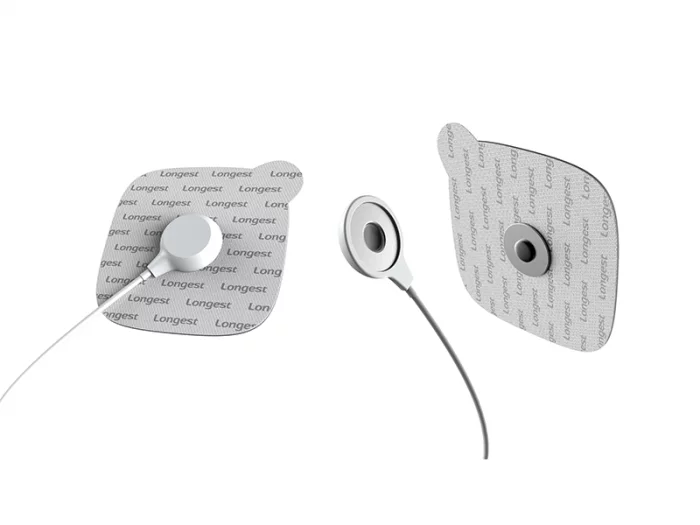

Accessories	Electrode lead hose 1pc Electrode: 50mm×50mm 4pcs Leg Bandage 1pc Power adapter 1pc

Specification

Pulse Duration	50μs-500μs
Pulse Frequency	1-120Hz
Intensity	0-100mA
Time	0-60min
Battery Life	More than 4 hours
Rated Power	6VA
Dimension	59(L) × 59(W) × 22(H) mm
Weight	60g (only main unit)

Product Information

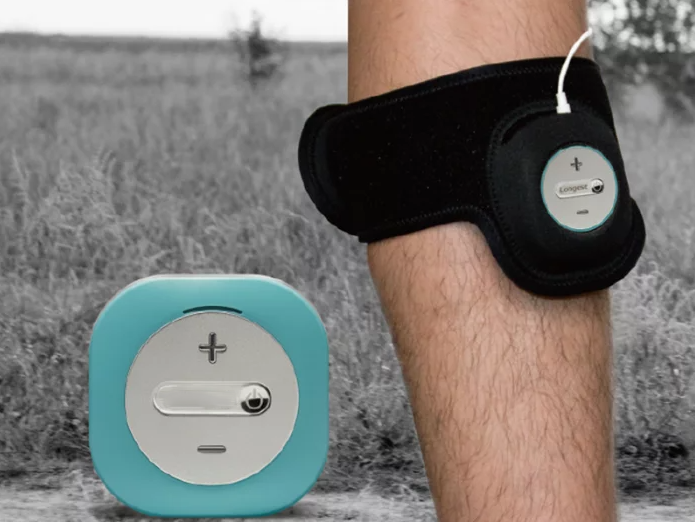

Our FES machine provides the foot with dorsiflexion through electrically stimulating muscles in the affected lower leg. It comes with two treatment modes – training mode and walking mode.

Training mode is the transition from passive training to walking training for patients who are unable to perform active training. This mode can be selected for muscle training while sitting or lying down, to accelerate muscle recovery, slow atrophy of the injured calf, maintain and improve range of motion in the ankle, and enhance local blood circulation.
Walking mode refers to electrical stimulation for foot drop while walking to restore neuromotor function. It can help to maintain a normal gait when walking. Stimulation during walking and repeated training will leave traces on the cerebral cortex. At the same time, it will give feedback to the central nervous system and restore brain neuromotor function.
