Pulse Oximeter

  • CE certification
  • Warranty
  • After-sale Service
OEM Available
Request a Quote
WhatsApp
Download Catalog

Specifications

Description

Pulse 0ximeter adopts Photoelectric Oxyhemoglobin lnspection Technology integrated with Capacity Pulse Scanning & Recordingechnology, which can be used to measure human oxygen saturation and pulse rate through finger. The device is suitable for use in family,hospital, oxygen bar, community healthcare and physical care in sports, etc. (lt can be used before or after exercise, but not recommended to use during exercising).

General

Product Name Pulse Oximeter
Function Diagnose,suitable for use in family,hospital, oxygen bar, community healthcare and physical care in sports, etc
Certification CE
Warranty 1 Year
After Sales Service after-sale technical support

Details

Instrument classification Class II
Usage Professional Testing
Power Source Electric
Material Plastic
Features
  • Display of SpO2 value
  • Display of pulse rate value and bar graph
  • Display of pulse waveform
  • Display of PI value(selection function)
  • Chinese and English bilingual switch
  • With function menu
  • Clock function
  • Review function
  • Code lock protection alarm function

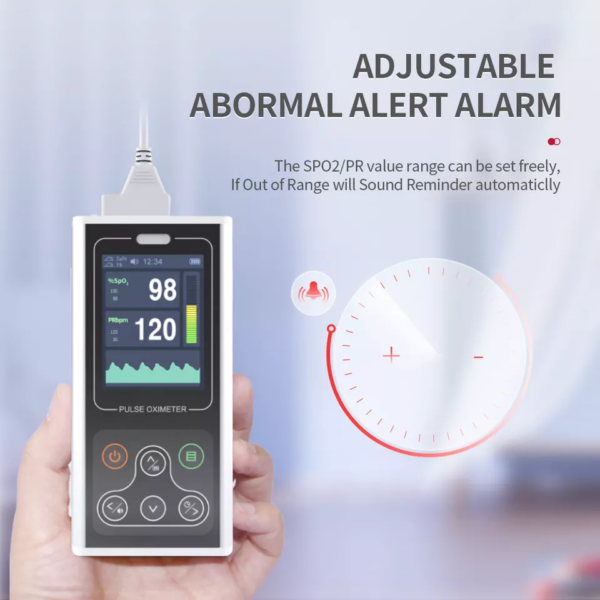

  • Alarm function(Finger out or out of limit)
  • Battery power indication, Ultra low power warning function
  • Adjustable screen brightness
  • Adjustable sound volume
  • Restore factory Settings
  • Storage function for SpO2 and PR values, and data stored can be uploaded to PC
  • Real-time data can be uploaded to PC
  • Bluetooth connection to PC(optional)
  • External SpO2 probe can be connected

Specification

Display mode 2.8″ color screen
Screen resolution 240* 320
SpO, measurement range 0 % ~ 100 %(resolution: 1 %)
Accuracv: 70%~100%: +2%
0%~69%:unspecified
PI measurement range 0 % ~ 20 %
Accuracy: 1% ~20 %,allowable absolute error: 士1%:
0%~0.9 %.allowable absolute error: + 0.2 %
PR measurement range 30 bpm~250 bpm(resolution:1 bpm)
Accuracy:土2 bpm or 2 %, whichever is greater.
Accuracy under low perfusion low perfusion 0.4 %, SpO,accuracy: +4%;
PR accuracy: 士 2 bpm or 士 2 %, whichever is greater.
Light interference compared to the values measured in normal condition and
ambient light condition, the deviation: < +1%
Battery A rechargeable built-in lithium battery
Shelf Life 1 year

OEM & Private Label Support

  • Custom branding on boxes and cartons
  • Custom packaging design
  • Sizes, colors and thickness customization where applicable
  • Regulatory documentation support
