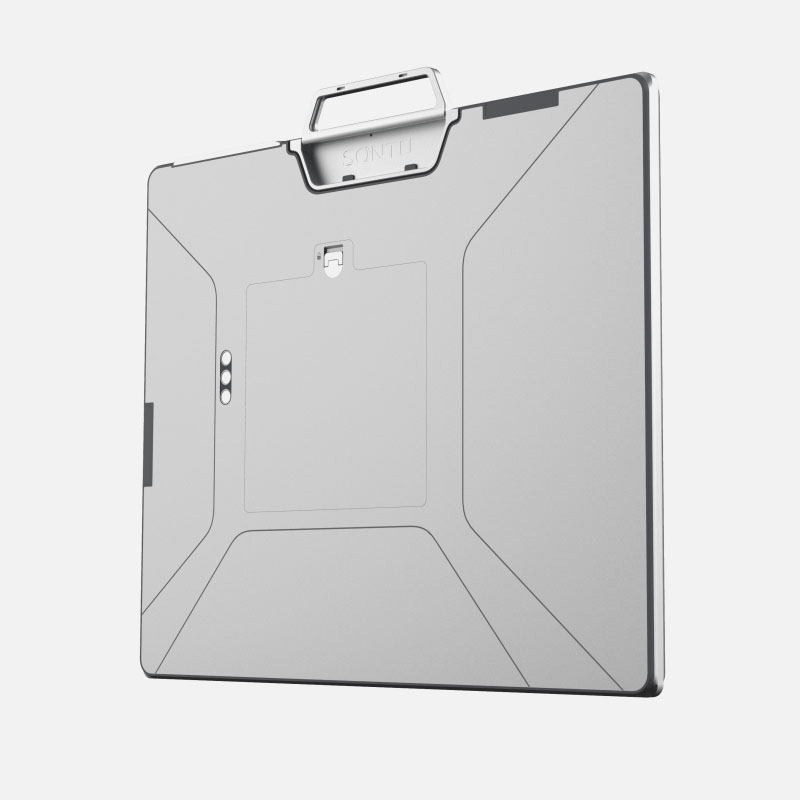

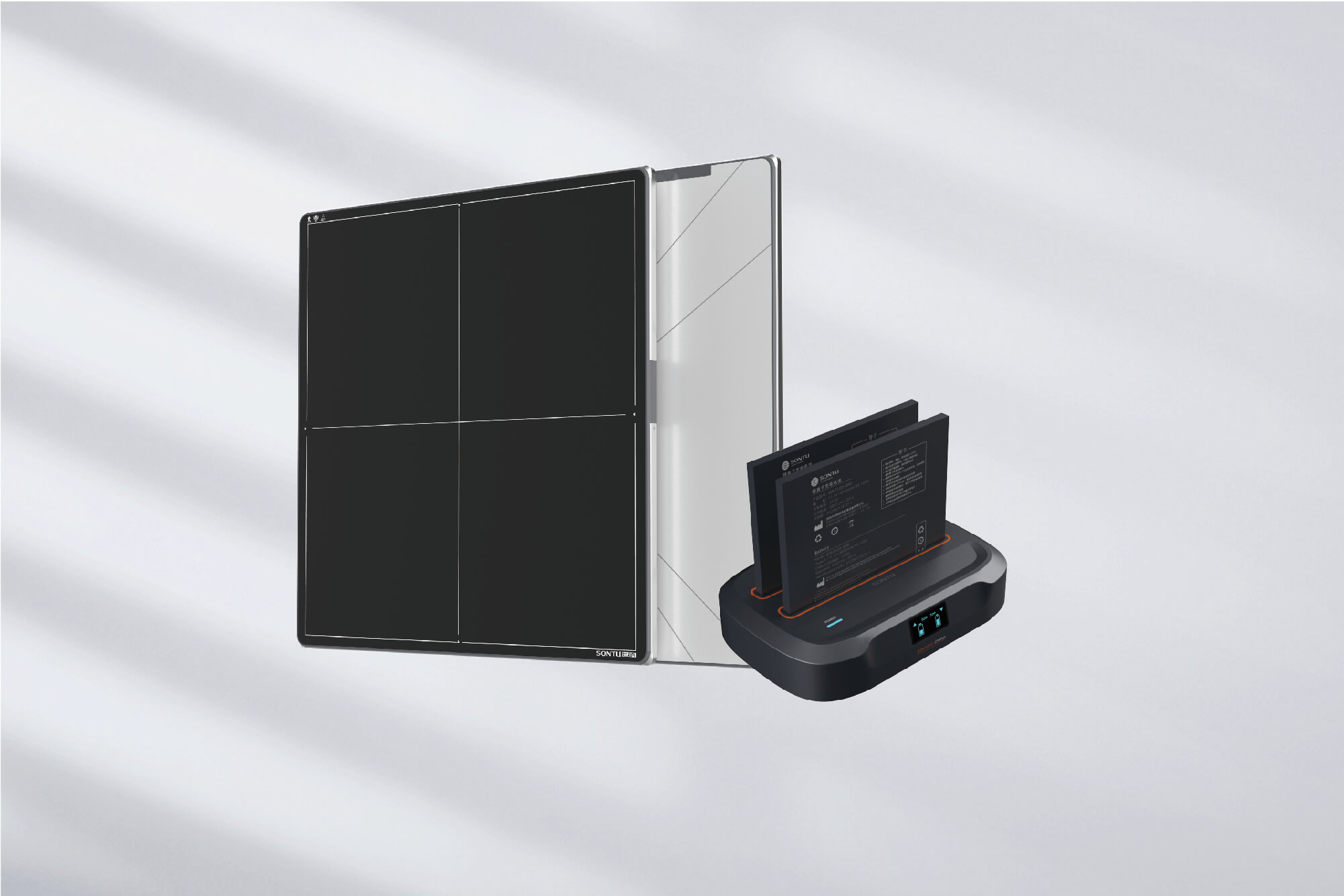

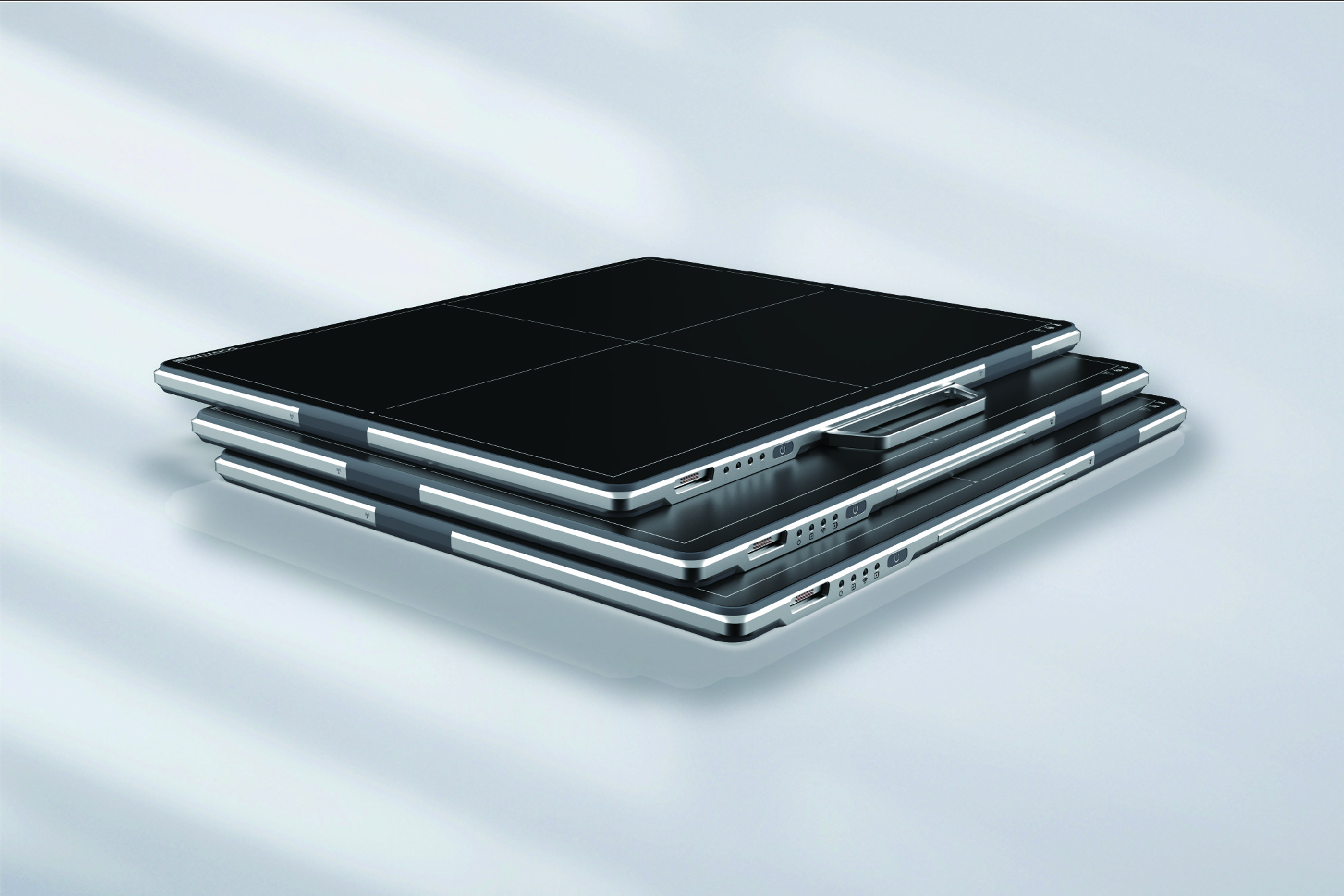

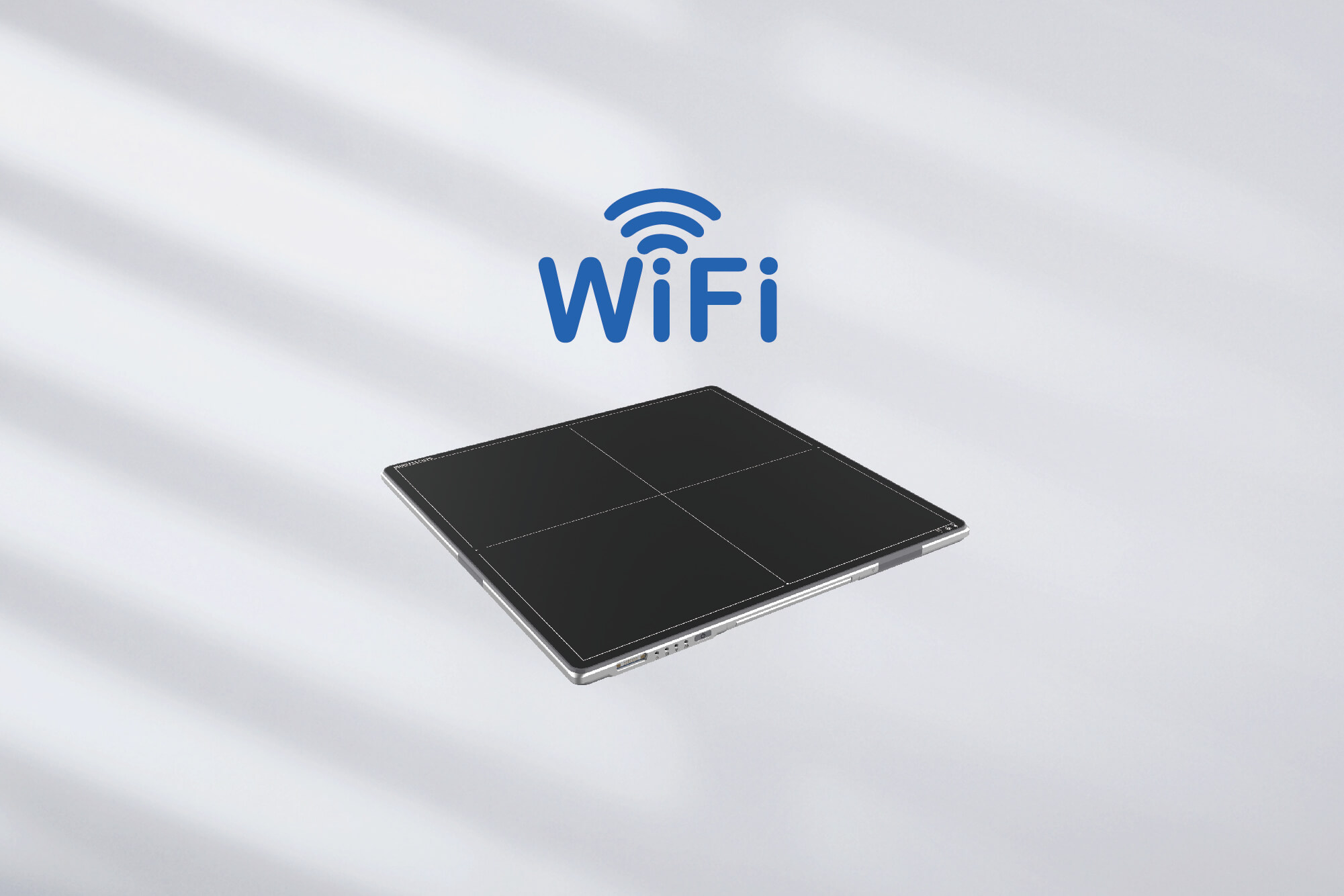

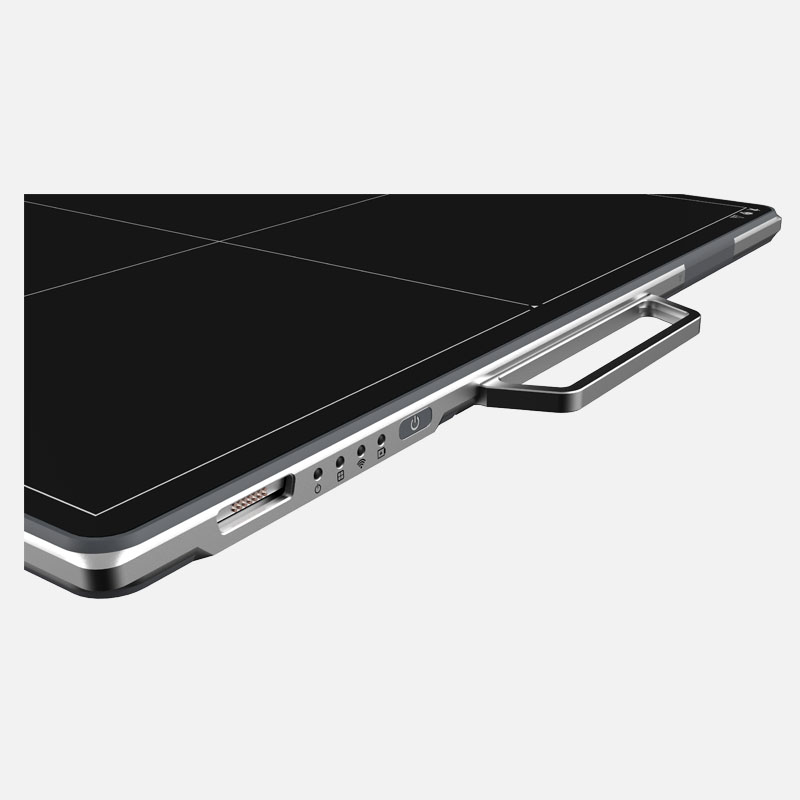

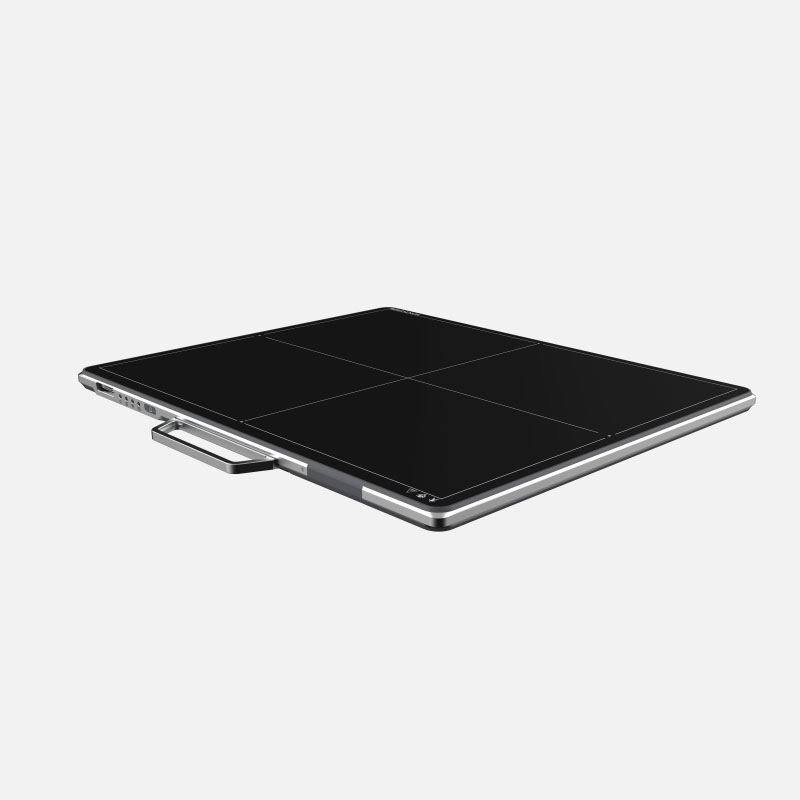

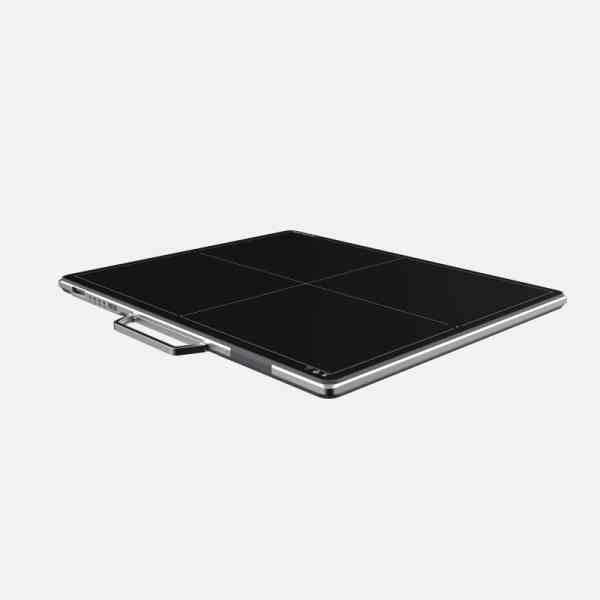

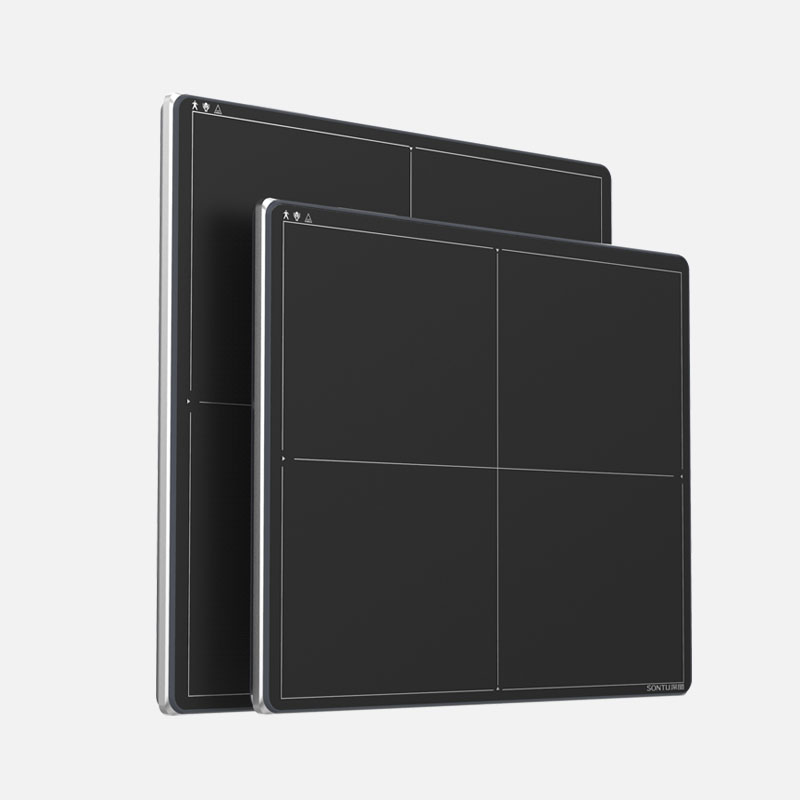

Wireless Flat Panel Detector
The wireless FPD is a lightweight and user-friendly design. The superior image quality from its high spatial resolution and excellent DQE empowers the doctors to provide accurate diagnoses with lower-dose radiation.It is intended to replace film/screen systems in all general-purpose diagnostic procedures. This device is not designed for mammography or dental applications.
General
| Product Name | Wireless Flat Panel Detector |
|---|---|
| Function | to provide a general radiographic diagnosis of human anatomy |
| Certification | / |
| Warranty | 1 Year |
| After Sales Service | after-sale technical support |
Details
| Contraindications | Pregnant woman, gestation period, lactation period, and nearly 3 months have pregnant plan person careful use. |
|---|---|
| Intended User | The device is intended to be operated in a radiological environment by qualified staff. |
| Intended patient population | The device applies to all patient populations who need to take a general radiographic diagnosis. |
| Warning | 1. Ensure that all necessary precautions are taken before each X-ray exposure. 2. Do not modify this equipment without the authorization of the manufacturer. 3. This product cannot be used in flammable gas or corrosive gas environment. 4. Do not position this equipment to make it difficult to operate the disconnection of the power cable from the supply mai |
| Features |
|
Specification
| Scintillator | CsI/Gos |
|---|---|
| Active Area (inch) | 14×17 |
| Pixel Pitch (μm) | 140 |
| Dimension (mm) | 462*384*16 |
| Weight(kg) | 3.5 |
| Operating Temperature (℃) | 10～40 |
| Operating Humidity (%RH) | 30～75 |
| Storage Temperature (℃) | -20～+55 |
| Storage Humidity (%RH) | 30～93 |
Clinical Image
