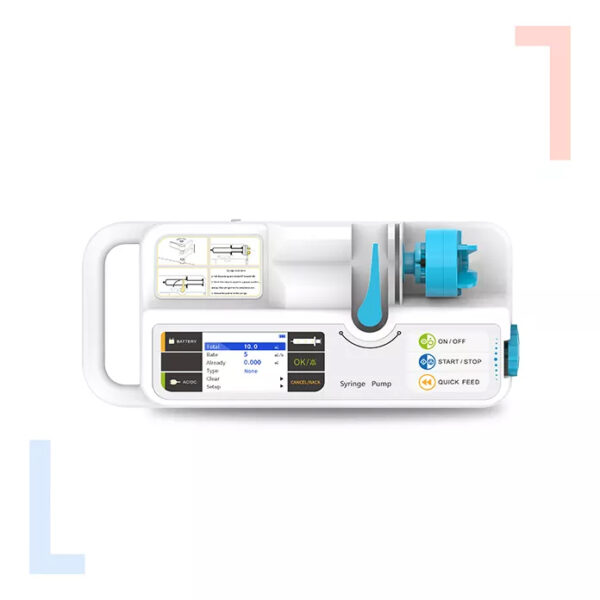

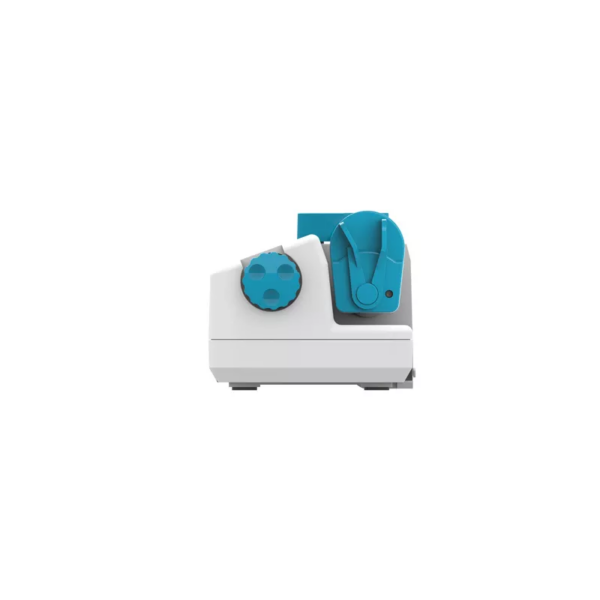

Syringe Pump

Specifications

Product Name	Syringe Pump
Function	Checking the syringe specification automatically
Certification	CE
Warranty	1 Year
After Sales Service	after-sale support

Features	Infusion rate and total volume can be set by user. Alarms for infusion pipe occlusion, syringe fall-off, communication abnormal, low battery. Bright, alarm volume and range of pressure alarm are adjustable. Quick feed function, convenient for supplying medicine quickly and instantaneously. Enter KVO mode after infusion completed. The system will give prompt signal when there is no operation at power-on state. Built-in rechargeable battery provides such functions as auto-switch power supply and auto-charge. Display parameters with large screen, and give prompt information with visual, auditory and character signal, which is convenient for medical persons to operate. The device can equipped with disposable syringe (CNS), and accuracy can be ensured by adjusting parameters.

Features

Infusion rate and total volume can be set by user.
Alarms for infusion pipe occlusion, syringe fall-off, communication abnormal, low battery.
Bright, alarm volume and range of pressure alarm are adjustable.
Quick feed function, convenient for supplying medicine quickly and instantaneously.
Enter KVO mode after infusion completed.
The system will give prompt signal when there is no operation at power-on state.
Built-in rechargeable battery provides such functions as auto-switch power supply and auto-charge.
Display parameters with large screen, and give prompt information with visual, auditory and character signal, which is convenient for medical persons to operate.
The device can equipped with disposable syringe (CNS), and accuracy can be ensured by adjusting parameters.

Infusion rate	10ml 0.1ml/h-100ml/h 20ml 0.1ml/h-200ml/h 30ml 0.1ml/h-300ml/h 50ml 0.1ml/h-500ml/h
Rate of quick feed	10ml 100ml/h 20ml 200ml/h 30ml 300ml/h 50ml 500ml/h
Accumulated volume display	0ml-999.9ml
Accuracy	±3%
KVO rate	0.1ml/h~5ml/h, adjustable
Temperature	+5~40℃
Atmospheric pressure	860hPa~1060h
Relative humidity	20%~90%
Storage environment	Temperature: -20℃~+55℃
Relative humidity	≤90%
Dimension	310mm140mm135mm(L×W×H)
Weight	1.7kg
